- 0.7 inch (18mm) measurement distance
- 0.1 inch (2.5mm) spot size
- Always-on dual laser
- Max/Min temp and hold features
- Easily switch from °C to °F
- Clock and chronograph
- Adjustable emissivity

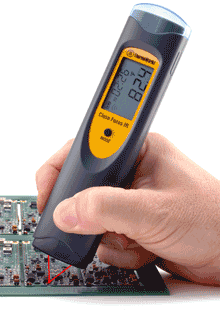

The Close Focus Infrared Thermometer measures surface temperatures precisely to 0.1" (2.5mm). This infrared Thermometer is great for electronic components, laboratory measurements, and research. Most infrared thermometers require a minimum of 0.75" diameter spot area. Now you can measure tiny areas with precision.
The Close Focus Infrared Thermometer's multi-line display includes a real-time clock and measurement of ambient temperature for convenience. Other features include Min/Max, Hold, adjustable emissivity, and built-in stop watch. This infrared thermometer will allow you to measure temperatures from -67°F to 428°F at 0.7" (18mm) distance.
You won't find a comparable close focusing infrared thermometer for under $200. It works great for circuit boards, electrical components, precision heat testing, plastic molding, and laboratory use.
ThermoWorks continues to bring temperature innovation direct to you.
| Specifications |
|---|
| Range | -67 to 428°F / -55 to 220°C |
| Accuracy* | ±(2+0.05/deg)°C from -67 to 32°F (-55 to 0°C);
±4°F (2°C) or ±2% of the reading, whichever is greater above 32°F (0°C) |
| Resolution | Thermometer: 0.1°
Stop Watch: 1 sec. |
| Temperature Units | °C and °F switchable |
| Distance to Target | 0.7 inch (18mm), with a 0.1 inch (2.5mm) spot size |
| Emissivity | 0.95 default; adjustable to 1 in 0.05 increments |
| Spectral Range | 5 to 14 µm |
| Operating Range** | 32 to 122°F (0 to 50°C) |
| Features | Auto real time clock and room temperature while power is off; °C/°F switchable; MIN/MAX/LOCK; stop watch |
| Response Time | 1 second |
| Battery | AAA x 2 - included, 15 hrs. continuous |
| Auto-Off | 15 seconds |
| Dimensions | 6.7" x 1.5" x 1.0" (170 x 38 x 25 mm) |
| Weight | 4.4 oz (125g) including two AAA cells |
| Certificate | Includes Certificate of Conformance |
*IR accuracy can be affected by the emissivity setting, target spot size, and rapid changes in ambient temperature.
**EMC/RFI:Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of approximately 3 volts per meter, but the performance of the instrument will not be permanently affected.
Precision Focusing
Focused IR measurements
to a 0.1" spot size.
Multi-Function Display
Min, max, hold, real-time clock, stopwatch, ambient, and current measurement all conveniently displayed.
Download CF-IR User Manual
