SKU:THS-271-332

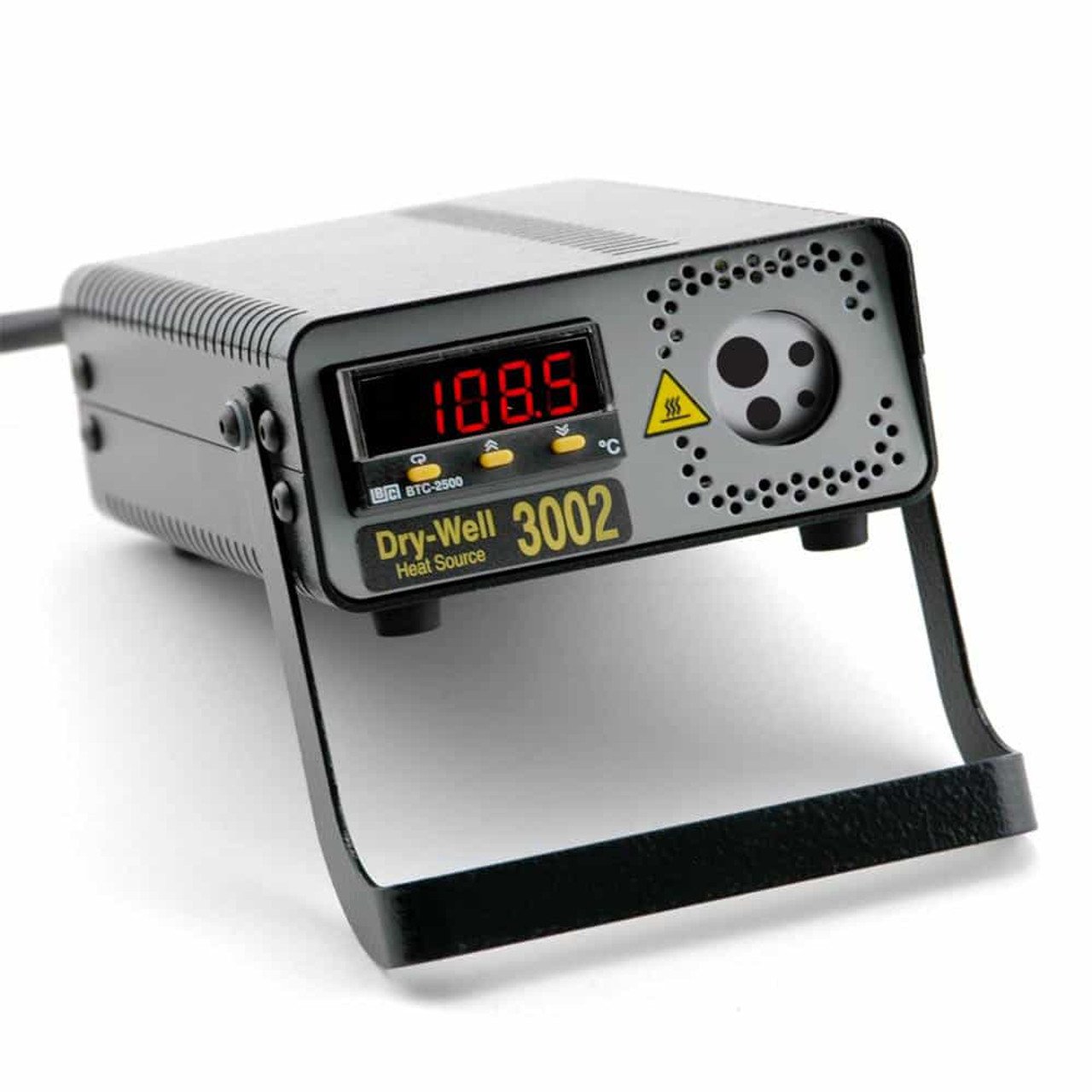

Discover our mini heat sources, designed to quickly and accurately verify your thermometer's performance up to 250°C/ 482°F. Simply set the heat source to your desired test point, insert the probe, and confirm accuracy in minutes!
With a 0.1° resolution, ±0.5°C accuracy, and rapid temperature stabilization, most industrial thermometers are calibrated in just 10 minutes. Plus, it includes a NIST-Traceable Calibration Certificate, ensuring reliable results as a thermometer standard.

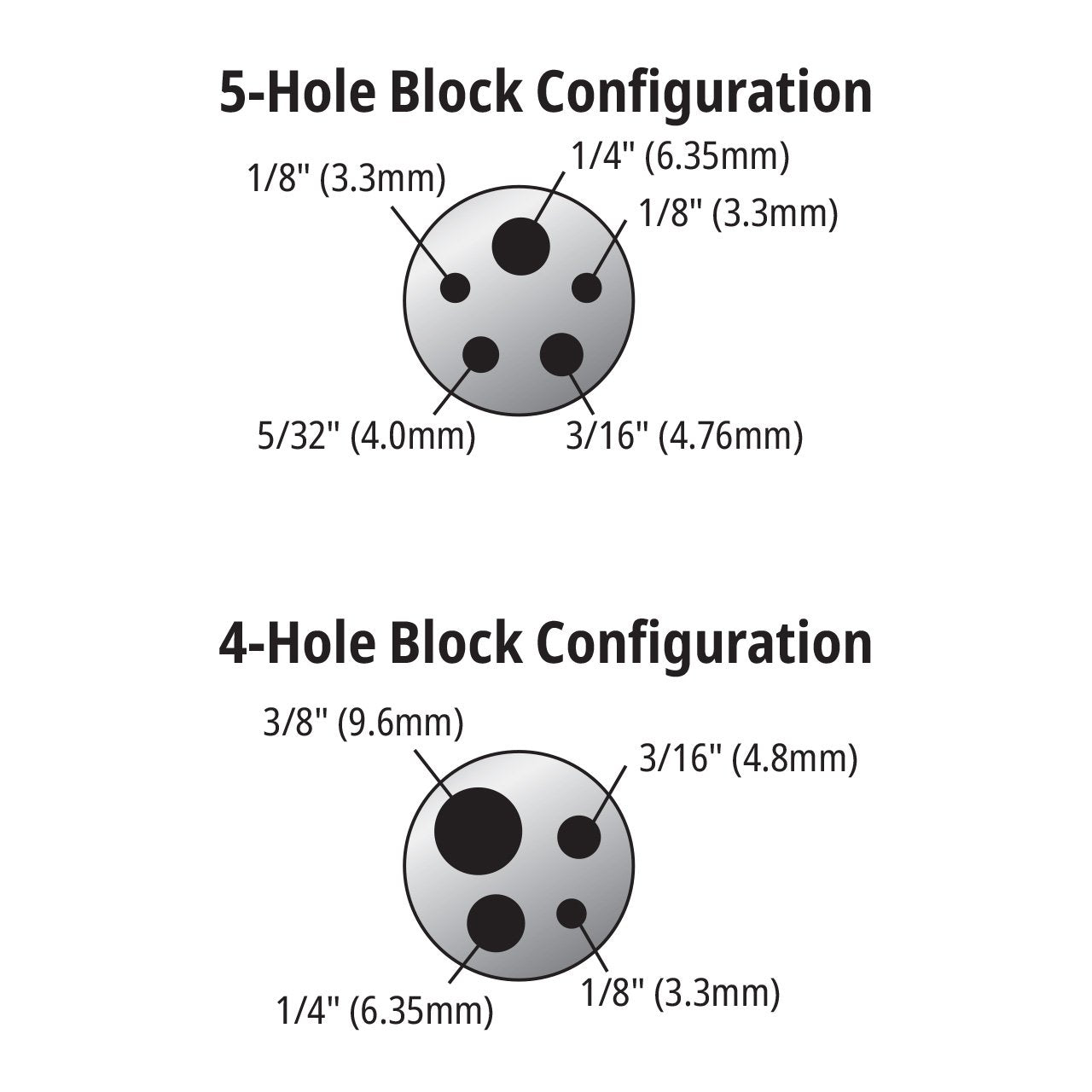

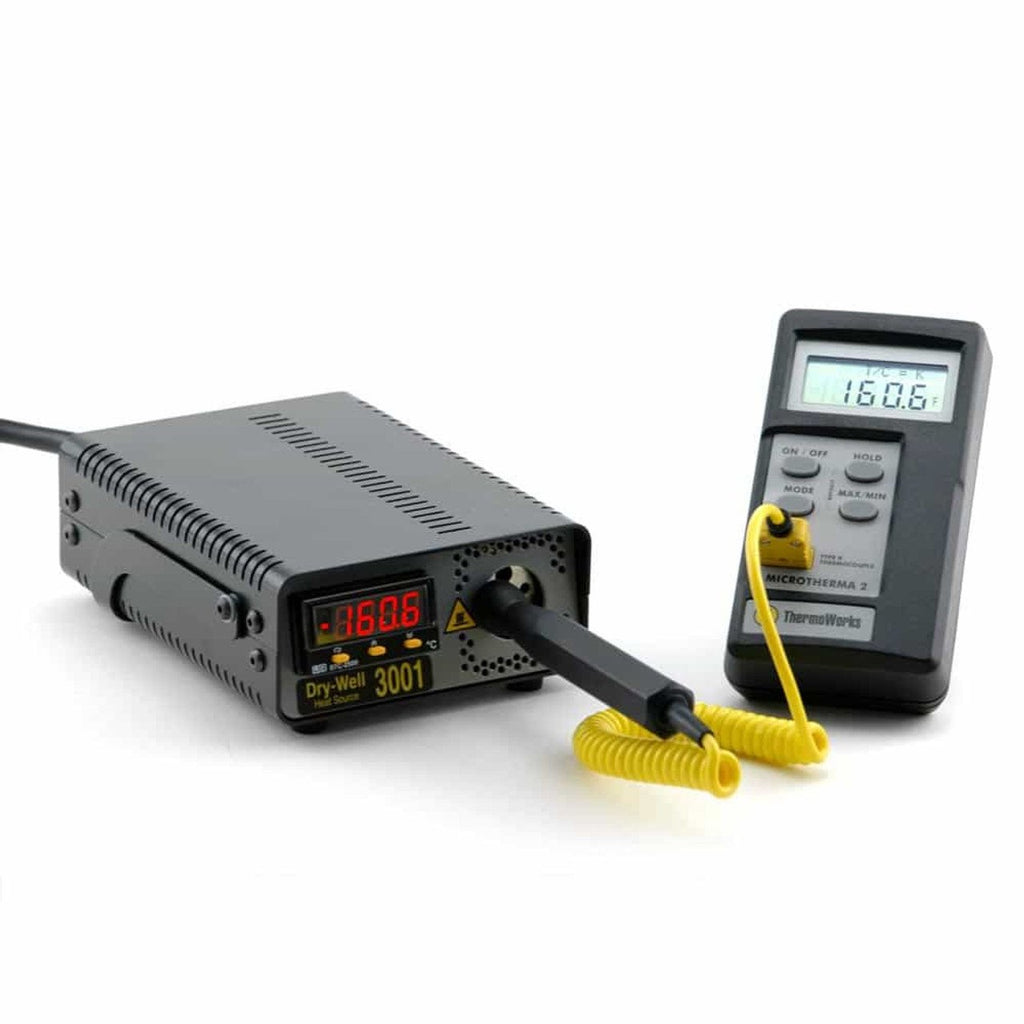

Choose from two block configurations to fit your probe diameters. For even greater precision, perform comparison calibrations using our high-accuracy thermometry standards. Insert your calibrated standard into one of the test wells and your daily-use probe into another test well to compare its performance at any temperature from ambient to 482°F.
Compact and portable, this dry block fits in your hand or toolbox—making it the ultimate calibration tool for most temperature ranges.



Available vis custom order. Call or Email for information.

Already purchased a Dry-Well Calibrator / Mini Heat Source (3001/3002)?
Explore the Dry-Well Calibrator / Mini Heat Source (3001/3002)
Everything you need to know about the Dry-Well Calibrator / Mini Heat Source (3001/3002). Browse full specifications and additional product support details below.
-
Temperature Source Accuracy±1.8 °F From 392 to 482 °F±0.9 °F From 91.4 to 391.8 °F±1.0 °C From 200 to 250 °C±0.5 °C From 33 to 199 °C±0.5 °C From 33 to 250 °C
-
Cooling Time482°F (250°C) to 212°F (100°C) after 10 minutes
-
Display0.4" (10mm) 4-digit LED
-
Heating TimeAmbient to 482°F (250°C) after 10 minutes
-
Power input115 or 230 volts, model dependent
-
Stabilization5 minutes
-
Well Depth4" (100mm)
- User Manual Download
Dry-Well Calibrator / Mini Heat Source (3001/3002)
- Voltage: 115V Fahrenheit
- Size: 4-Holes
