Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
  • Thermocouple Simulator/Meter
Thermocouple Simulator/Meter

SKU:VA710

$495.00
In stock

Check or calibrate any compatible thermocouple. Competing calibrators typically cost 2 or 3 times more.

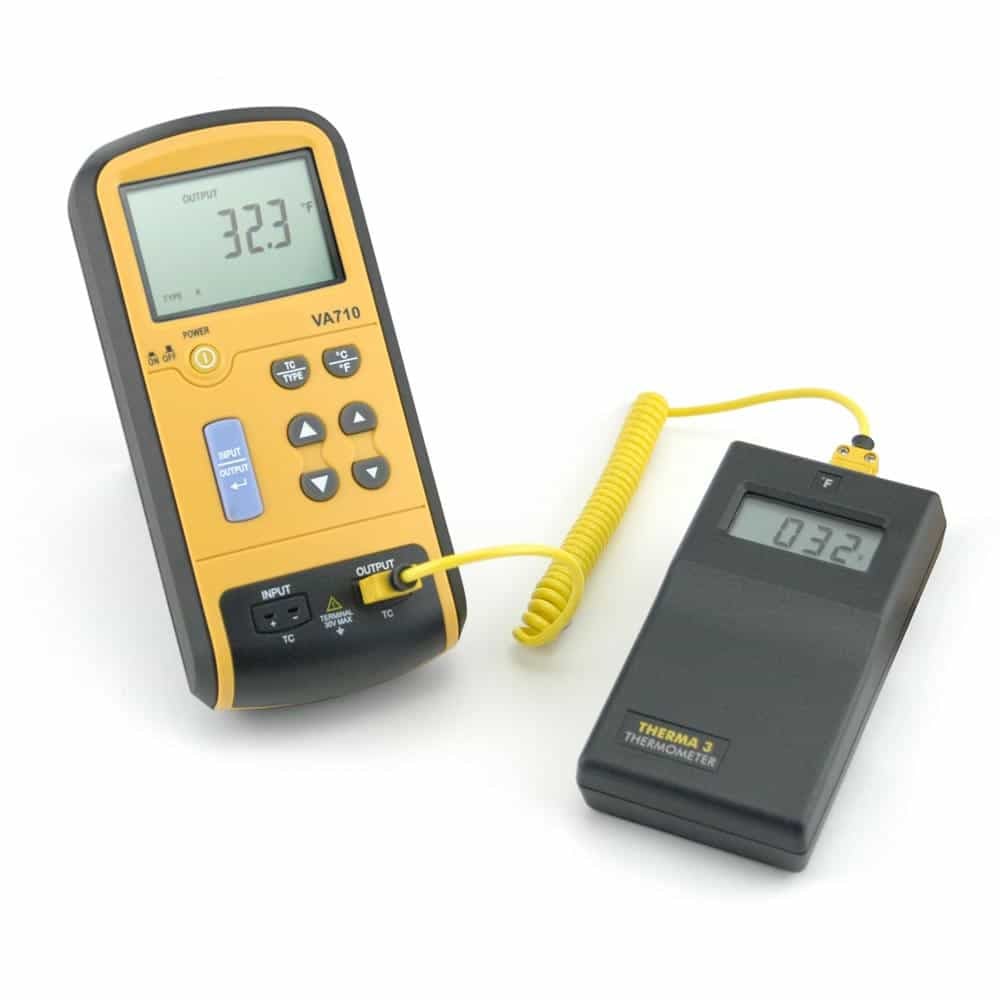

Use the VA710 to calibrate thermocouple meters with 8 different thermocouple types plus mVs. Simply plug-in to your instrument, dial in the desired temperature and compare. It's that easy.

For testing RTD instruments, choose our VA720. Simulate and measure 7 different RTD types in 2-wire, 3-wire, or 4-wire mode. Large single-function buttons and a big digit display make these tools instrument shop favorites.

  • Measure and simulate 8 different thermocouple types
  • Measures and outputs mV
  • Includes NIST-Traceable calibration certificate
  • Very simple operation
  • Large digit display

Already purchased a Thermocouple Simulator/Meter?

Explore the Thermocouple Simulator/Meter

Everything you need to know about the Thermocouple Simulator/Meter. Browse full specifications and additional product support details below.

  • Thermocouple Measure/simulate Accuracy
    ±0.025% +2 counts mV From -10 to 100 mV
    ±1.8 +10uV °F From 1112 to 3272 °F
    ±1.8 +10uV °F From -4 to 3182 °F
    ±1.8 +10uV °F From -4 to 3182 °F
    ±0.54 +10uV °F From -328 to 2192 °F
    ±0.54 +10uV °F From -328 to 2498 °F
    ±0.54 +10uV °F From -328 to 752 °F
    ±0.54 +10uV °F From -328 to 1742 °F
    ±0.54 +10uV °F From -418 to 2372 °F
    ±1 +10uV °C From 600 to 1800 °C
    ±0.3 °C
    ±1 +10uV °C From -20 to 1750 °C
    ±1 +10uV °C From -20 to 1750 °C
    ±0.3 +10uV °C From -200 to 1200 °C
    ±0.3 +10uV °C From -200 to 1370 °C
    ±0.3 +10uV °C From -200 to 400 °C
    ±0.3 +10uV °C From -200 to 950 °C
    ±0.3 +10uV °C From -250 to 1300 °C
  • Battery
    6 x AAA
